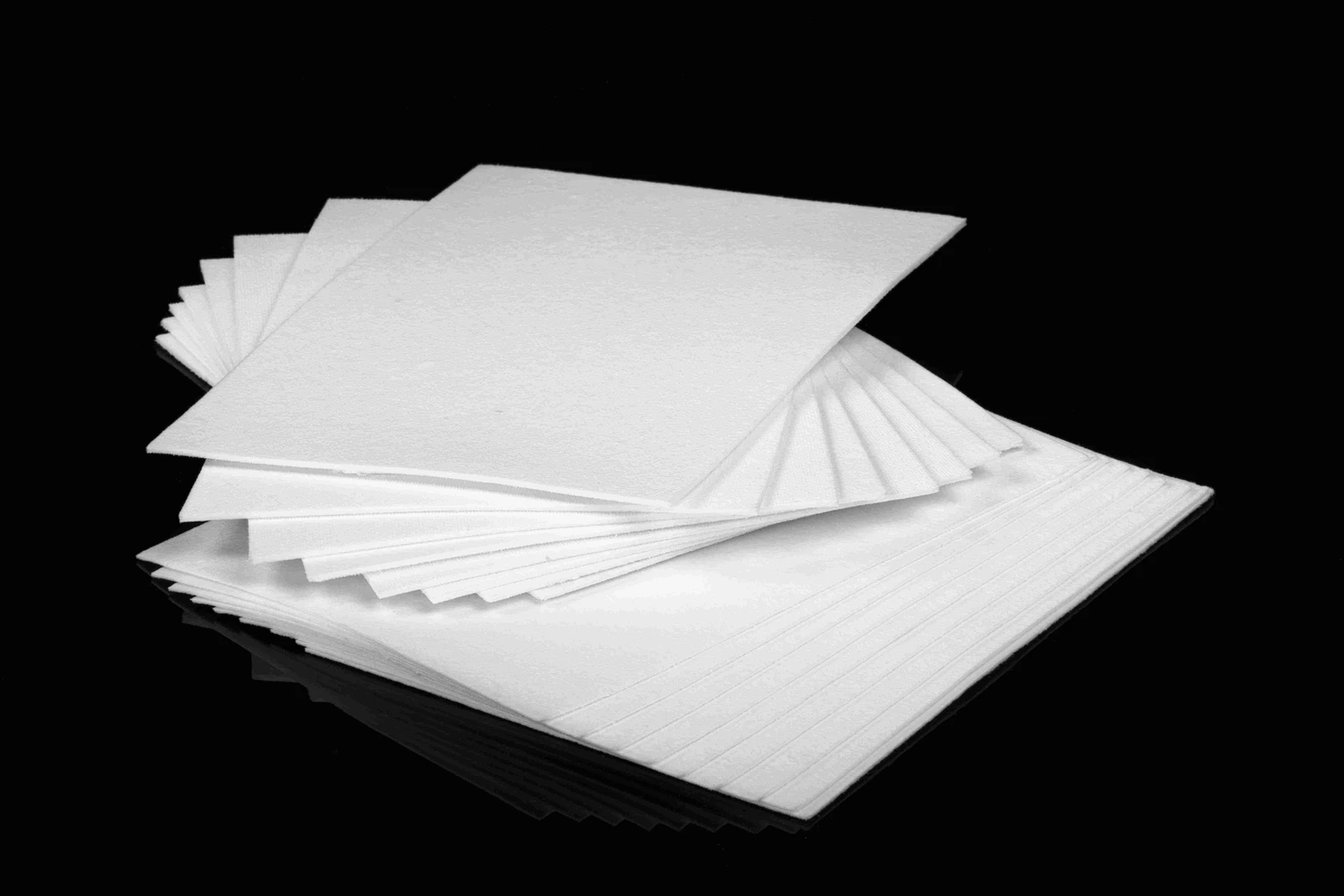

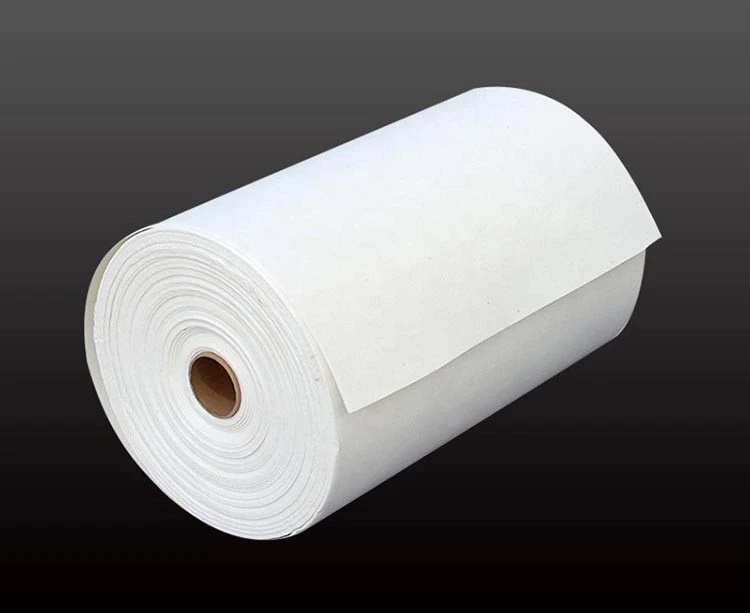

Ceramic Paper



Lucheng® Ceramic paper is mainly made of selected aluminum silicate ceramic fiber cotton through wet forming process. On the basis of traditional processes, the slag removal and drying processes have been improved, characterized by asbestos free, uniform fiber distribution, white color, no layering, few slag balls (four centrifugal slag removal), flexible adjustment of bulk density according to the purpose, high strength (including reinforced fibers), good elasticity, and strong mechanical processing ability.

Ceramic paper (material: aluminum silicate fiber, AES) is produced by adding a small amount of scientifically selected and strictly controlled binder to aluminum silicate refractory fibers. The binder will completely burn out during use.

Width: 610/1220mm

Thickness: 1-12mm

Length: 6-60m

According to different working conditions and applications, two types ceramic papers can be chosen: soft and hard, Hard ceramic paper has a stiff surface, but its softness, elasticity, and tensile strength are lower than those of soft ceramic paper.



With the advancement of technology and process optimization, the thickness of ceramic fiber paper may become thinner in the future.

Ceramic fiber paper can be cut into various shapes and used to make flange gaskets or other insulation materials

1.Fire prevention: Maintain intact shape and size even after a major fire.
2.High temperature resistance: There are two types of temperature resistance: 1260 ℃ and 1400 ℃.
3.Insulation: It can effectively prevent or slow down heat transfer, and the thermal conductivity at 800 ℃ can be as low as 0.12w/(m.k).
4.Insulation: Inorganic silicate material, non-conductive at high temperatures.
5.Sound insulation: High noise reduction coefficient.
6.Sealing: It has a certain degree of elasticity and can be used for high-temperature sealing.



1. High strength tear resistance

2. High flexibility and toughness

3. Low slag ball content

4. Accurate thickness

5. Thermal shock resistance

6. Extremely low thermal conductivity



Ceramic fiber paper also has the characteristics of being soft, lightweight, and easy to process. Its extremely low density and excellent flexibility allow ceramic fiber paper to be freely folded and cut as needed, making the installation process simple and fast. At the same time, ceramic fiber paper also has a certain degree of elasticity and can be used for high-temperature sealing to meet the needs of different scenarios. This flexibility makes ceramic fiber paper more widely used in the field of thermal insulation, making it easy to handle complex shaped equipment and narrow spaces.

Ceramic fiber paper is a high-temperature refractory material made of ceramic fiber , which has excellent properties such as high temperature resistance, corrosion resistance, insulation, and fire resistance. It is widely used in aerospace, electronics, chemical, construction, and other fields.

1. High temperature insulation: Ceramic fiber paper can be used for high-temperature insulation and can withstand temperatures up to 1400. It can be used for insulation of equipment such as heat treatment furnaces, high-temperature pipelines, boilers, etc.

2. Fire isolation: Ceramic fiber paper can be used for fire isolation, which can prevent the spread of flames and heat. It can be used for fire isolation in buildings, electrical equipment, etc.

3. Electrical insulation: Ceramic fiber paper can be used for electrical insulation, can withstand high voltage and high temperature, and can be used for insulation of electrical equipment such as motors, transformers, capacitors, etc.

4. Automotive braking: Ceramic fiber paper can be used for automotive braking, can withstand high temperatures and pressures, and can be used for the manufacturing of automotive components such as brake pads and clutches.

5. Other applications: Ceramic fiber paper can also be used in aerospace, chemical, petroleum, metallurgy and other fields, such as insulation for aircraft engines and anti-corrosion for chemical equipment.

Ceramic fiber paper is used as a thermal insulation layer in the engine compartment of a car. The engine is the heart of a car and generates a large amount of heat during its operation. Traditional insulation materials are often difficult to withstand high temperatures and prone to aging, while ceramic fiber paper can effectively block heat transfer, protect surrounding wiring harnesses, pipelines, and other components from high temperatures, and extend their service life. At the same time, it can also reduce heat accumulation in the engine compartment, improve engine heat dissipation efficiency, and thus enhance overall performance.

Ceramic fiber paper also plays an important role in the exhaust system. The exhaust pipe not only emits exhaust gas but also transfers a large amount of heat. If not handled properly, it may not only increase fuel consumption but also cause damage to other components of the chassis. Ceramic fiber paper, as a thermal insulation material for exhaust systems, can significantly reduce heat loss, improve exhaust efficiency, while reducing noise and vibration propagation, and enhancing interior quietness. Using ceramic fiber paper in the muffler can effectively reduce noise transmission and provide passengers with a more comfortable driving environment.

Ceramic fiber paper is also widely used for thermal insulation of automobile bodies. In winter, the insulation performance of the car body directly affects the temperature inside the car and the comfort of passengers. Ceramic fiber paper, with its excellent thermal insulation performance, can effectively reduce the loss of body heat, increase the temperature inside the car, and reduce heating costs. At the same time, its lightweight and high-strength characteristics also conform to the development trend of automotive lightweighting, which helps to improve the fuel economy of vehicles.



Ceramic paper plays an important isolation role in lithium batteries. We all know that lithium batteries have been widely used in modern life due to their high energy density and fast charging and discharging characteristics. However, lithium batteries generate a large amount of heat during use. Without effective isolation materials for heat dissipation, it can lead to dangerous situations such as battery overheating, fire, and even explosion. And ceramic fiber paper was born to solve this problem. It has excellent thermal insulation performance, which can effectively isolate the heat generated inside the battery and ensure the safe operation of the battery.



Ceramic paper can also enhance the performance and lifespan of lithium batteries. A material with good conductivity and high stability is needed to connect the positive and negative electrodes of lithium batteries, which is commonly referred to as an electrolyte. However, traditional electrolyte materials often have problems such as poor conductivity and flammability.

The company was founded in 2016 and is a technology-based large-scale enterprise that integrates new material technology research and development, production and sales, and engineering services. The product is widely used in industrial furnace lining, building fire insulation, high-temperature insulation and other fields.

The company mainly produces and sells refractory fiber products including ceramic fiber cotton, ceramic fiber blanket, ceramic fiber board, ceramic fiber paper, ceramic fiber module, ceramic fiber shaped parts, ceramic fiber textiles, nano board, calcium silicate board, polycrystalline mullite board, lightweight insulation brick, rock wool and other refractory, insulation, and thermal insulation series products.

Lucheng Group has established research and development centers, material testing centers, and overseas sales subsidiaries. After years of development, we have achieved significant results in the industry and have a stable customer base and good market reputation.

Your Premier Manufacturer of Refractory and Insulation Fiber Materials

Quality control：

Raw material：strictly control raw material high purity alumina silica fiber from bulk fiber and blanket, and organic and inorganic binder, which is supplied with stable quality and test report for every lot.

Process control at Removing slag content, vacuum forming process, drying, polishing and packing.

Finished products inspection at density, hardness, flatness, dimension, test report for every lot.

24 Hour Service, professional sales and technical engineers online for instant reply your message.

Professional team of production and sales

One-stop Solution of refractory fiber products, including fiber bulk, chopped bulk, removing-slag bulk, blanket, module, board, felt, paper, textile, vacuum forming and machined shapes, material includes alumina silica fiber, bio-soluble fiber, polycrystaline fiber.

Global Shipping by ship, train, express or auto.

Competitive price
